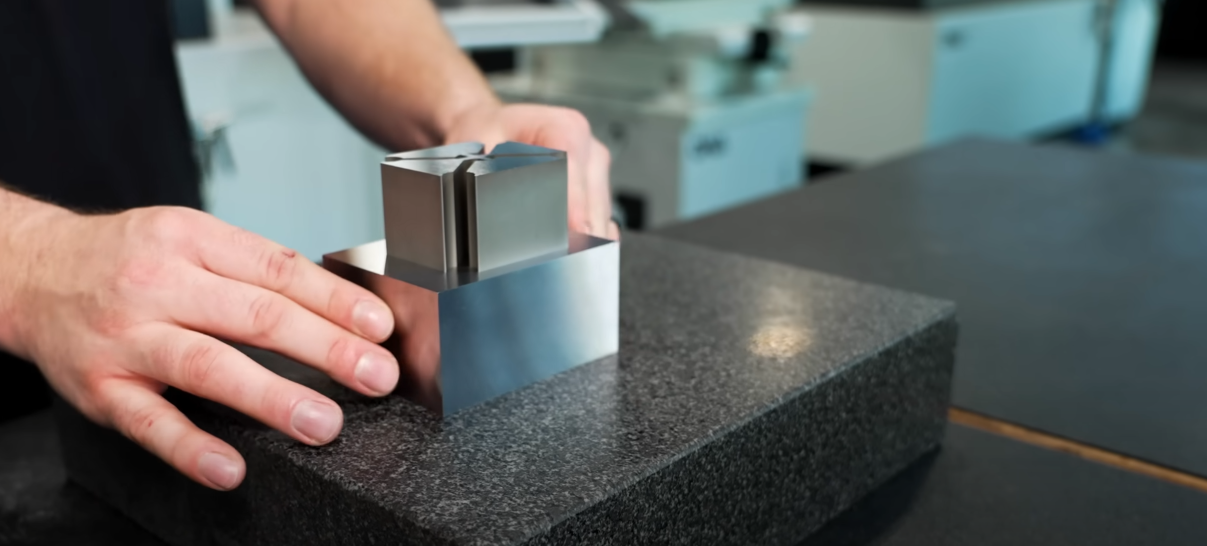

Electrical Discharge Machining (EDM) is a precise technique used to shape materials using electrical sparks. This guide will explain how EDM works, the materials it can machine, the types of EDM machines, and their specific benefits.

What is EDM Machining?

Definition and Overview

EDM machining uses electrical discharges (sparks) to remove material from a workpiece. This method is non-contact, making it ideal for machining hard metals. EDM machines can achieve precision as high as ±0.005 mm, which is crucial for high-tolerance applications.

Simple Overview Table

How EDM Machining Works

The Principle of Electrical Discharge Machining

EDM works by generating a spark between an electrode and the material. The spark temperature can reach up to 12,000°C, which is high enough to melt and vaporize tiny parts of the material. Below is a simplified chart to illustrate the process:

Basic Mechanism and Material Removal Process

• Step 1: The electrode moves close to the material, usually with a gap of 0.01-0.05 mm.
• Step 2: A spark jumps from the electrode to the material.
• Step 3: The spark melts and removes a small piece of the material.
• Step 4: The removed material is washed away by a dielectric fluid.

Simple EDM Process Flowchart

This flowchart outlines the basic steps of the EDM process, from positioning the electrode to flushing away debris.

Materials Suitable for EDM Machining

Common Materials

EDM is particularly suitable for machining hard metals that conduct electricity. Below are some examples of materials and their typical applications:

Material Properties That Affect EDM Performance

Certain material properties can affect the efficiency and effectiveness of EDM machining. These properties include:

• Electrical Conductivity: Materials must have a conductivity greater than 1 x 10⁶ S/m.
• Hardness: Harder materials (above 50 HRC) are generally easier to machine with EDM.
• Melting Point: Materials with high melting points (above 1,500°C) may require longer machining times.

Types of EDM Machining

Wire Cut EDM

Wire Cut EDM uses a thin wire, typically 0.25 mm in diameter, as the electrode to cut through the material. This method is used to create intricate shapes with high precision.

Applications and Benefits

• Used for: Cutting complex shapes, making tools, and dies.
• Benefits: High precision (±0.01 mm), can cut materials up to 300 mm thick.

Sinker EDM

Sinker EDM uses a shaped electrode to create detailed cavities in the material. It’s ideal for creating molds and dies with complex geometries.

Applications and Benefits

• Used for: Mold cavities, die making, and complex shapes.
• Benefits: Can create deep cavities (up to 200 mm), accuracy of ±0.005 mm.

Hole Drilling EDM

Hole Drilling EDM is used to create tiny holes, often as small as 0.1 mm in diameter, in hard materials. This method is commonly used in the aerospace and medical industries.

Applications and Benefits

• Used for: Small hole drilling, medical parts, aerospace components.
• Benefits: Drills precise, small holes in tough materials, hole depth-to-diameter ratios up to 100:1.

Simple EDM Types Table

Key Components of EDM Machines

Power Supply and Electrodes

The power supply provides the electrical energy needed for sparking, typically ranging from 50 to 400 volts. The electrodes, made of copper, graphite, or tungsten, conduct the electricity to the workpiece.

Dielectric Fluid

The dielectric fluid, usually deionized water or oil, cools the area, controls the spark, and washes away eroded material. The fluid has a breakdown voltage of around 200-400 V, which is crucial for controlled sparking.

Control Systems and Tooling

The control systems manage the movement of the electrode and regulate the spark's energy. Modern EDM machines use CNC controls, which can achieve positioning accuracy of up to ±0.001 mm. Tooling holds the workpiece securely during the machining process.

Simple Components List

Advantages and Disadvantages of EDM

Advantages of Using EDM

EDM offers several advantages, particularly in precision machining of complex parts.

Precision and Complexity

• Precision: EDM can achieve tolerances as tight as ±0.005 mm.
• Complex Shapes: EDM can machine intricate shapes and features that are difficult with traditional methods.

Disadvantages and Limitations

While EDM is powerful, it does have some limitations.

Material Constraints and Speed

• Material Constraints: EDM only works on electrically conductive materials, with a minimum conductivity of 1 x 10⁶ S/m.
• Speed: EDM is slower compared to other machining processes, with material removal rates typically around 2-30 mm³/min.

Simple Pros and Cons Table

Primary Applications of EDM Machining

Industries That Benefit from EDM

EDM is widely used in industries requiring high precision and the ability to machine hard materials.

• Aerospace: Turbine blades, engine components, typically machined to tolerances within ±0.01 mm.
• Automotive: Mold components, dies, with typical surface finishes of 0.4-0.8 µm Ra.
• Medical Devices: Surgical instruments, implants, requiring high precision (±0.005 mm).

Examples of Products Manufactured Using EDM

Safety Considerations in EDM Machining

Key Safety Protocols

• Wear Protective Gear: Always use gloves, goggles, and appropriate clothing to protect against sparks and debris.
• Proper Ventilation: Ensure the machining area is well-ventilated to avoid harmful fumes from the dielectric fluid.
• Machine Maintenance: Regularly check and maintain EDM machines to prevent accidents. Ensure dielectric fluid is replaced every 500 hours of operation.

Common Hazards and How to Mitigate Them

• Electrical Hazards: Always turn off the machine before performing maintenance or changing electrodes.
• Fire Risks: Keep flammable materials away from the machine and ensure fire extinguishers are available in the workspace.

Comparison with Other Machining Techniques

EDM vs. Traditional Machining

EDM vs. Laser Cutting

Challenges and Common Problems in EDM Machining

Technical Challenges

• Electrode Wear: Electrodes can wear down, affecting precision. This is especially true for copper electrodes used in high-power EDM, where wear can exceed 0.1 mm/hour.
• Slow Processing Speed: EDM is slower compared to other machining processes, with material removal rates typically around 2-30 mm³/min.

Solutions and Best Practices

• Use High-Quality Electrodes: High-purity graphite or tungsten electrodes reduce wear and improve precision.
• Optimize Parameters: Adjust voltage (50-400V), current (up to 30A), and spark duration (1-2000 µs) for better efficiency and material removal rates.

How Tuofa Can Help You with Custom EDM Machining Parts

At Tuofa, we specialize in providing high-quality custom EDM parts. Our advanced machines and skilled technicians ensure that every part meets your exact specifications. Whether you need complex shapes or hard materials machined, Tuofa has the expertise to deliver precision and quality.

Why Choose Tuofa?

• Expertise: Over 15 years of experience in EDM machining.
• Quality: We use state-of-the-art equipment like Sodick AG40L and Mitsubishi EA28V, ensuring precision up to ±0.002 mm.
• Service: Dedicated support and custom solutions tailored to your needs.

Contact Tuofa China today to learn how we can help with your EDM machining requirements!
