Tuofa CNC Machining Helped Upgrade Sensor Housing for Plants' Electrical Signals
Combining AI-driven data analysis with plant-sensing technology is becoming an important direction in plant signal monitoring. Reliable analysis depends on sensors collecting stable, real-time signals, and the sensor housing directly affects the protection, position, and assembly of the internal components.
Project Overview
As demand grows for real-time plant-status data in plant care, landscaping, and environmental monitoring, our client wanted to upgrade the sensor housing by optimizing
- material
- construction design
- assembly precision
Client Requirements
- Make the sensor easier to mount near plants.
- Help the housing withstand humidity, irrigation, and condensation.
- Ensure the internal components can be normally assembled in the sensor housing.
Project Details
In this project, Tuofa manufactured a custom sensor housing that is critical for continuously collecting plant electrical signals. To support the AI-enabled device, the housing needed a more compact and lighter design, durable material, and precise assembly alignment.
| Country | Canada |
|---|---|
| Industry | AI-Enabled Plant Monitoring |
| Product | CNC-Machined Sensor Housing for an AI-Powered Plant Electrical-Signal Monitoring Device |
| Material | 6061-T6 Aluminum |
| CNC Machining Techniques | CNC 4-Axis Milling, Precision Drilling, Tapping, and Internal Pocket Milling |
| Surface Treatment | Type II Black Anodizing |
| Tightest Tolerance | ±0.05 mm |
The Challenge
Limited Internal Space
The compact housing leaves limited clearance for PCB assemblies, connectors, screws, and the cover.
Black Anodizing Allowance
The coating thickness can affect the usable space of holes, slots, threads, and mating features.
Post-Finish Assembly Fit
The final anodized housing still needed to assemble normally without compromising function.
Tuofa's Solution
Anodizing Allowance Plan
We confirmed the black anodizing thickness range and identified holes, slots, threads, and other critical features that could be affected.
Feature Compensation
Critical holes, slots, and openings were slightly enlarged where needed. Internal and external threads were compensated before anodizing.
Process Control
Critical areas were checked carefully before subsequent features were machined, helping prevent defective parts from moving forward.
Two Full Quality Inspections
Full inspections were carried out before and after anodizing to verify machining accuracy, tolerance, and final assembly fit.
Result

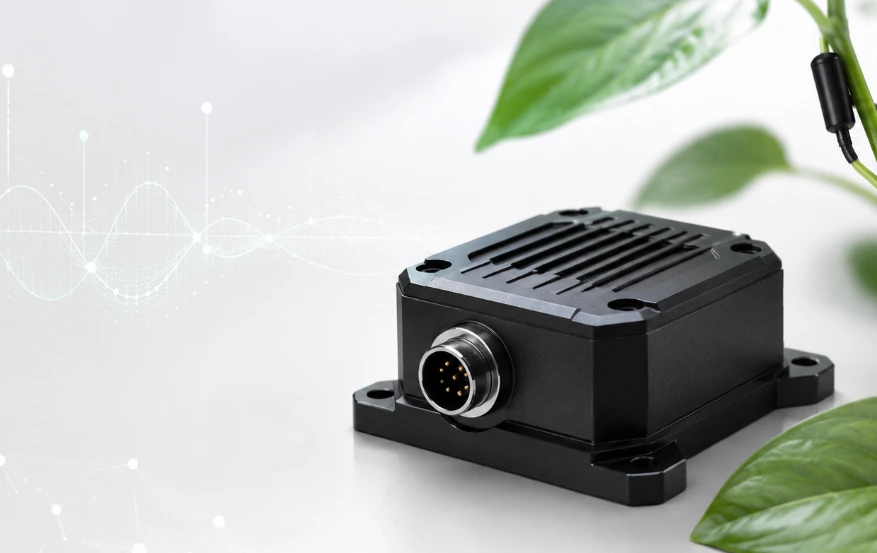

Tuofa CNC manufactured a compact 6061 aluminum sensor housing with a black anodized finish for our client. The sensor housing's design, fit, and functional performance were validated through prototype testing. It met the requirements for dimension, tolerance, and surface finish, and importantly, its function was not compromised. The precision compact design helped the sensor match the AI technology for the plants' electrical-signals project.
- ✓Prototype design, fit, and function validated
- ✓±0.05 mm tolerance requirement achieved
- ✓Type II black anodized finish verified
- ✓Stable internal component assembly retained
