How to Make Custom Solar Brackets on Tuofa?

Quick Takeaway

This case records how Tuofa worked with the customer through the main stages of a custom solar bracket project, from requirement clarification and material selection to design suggestions, production, and semi-assembly. It also shows how the customer and our team communicated when decisions were needed.

The project gave us more practical experience with this type of work. If you are planning a similar OEM project, we hope the process can help you think through your own material, design, and production decisions.

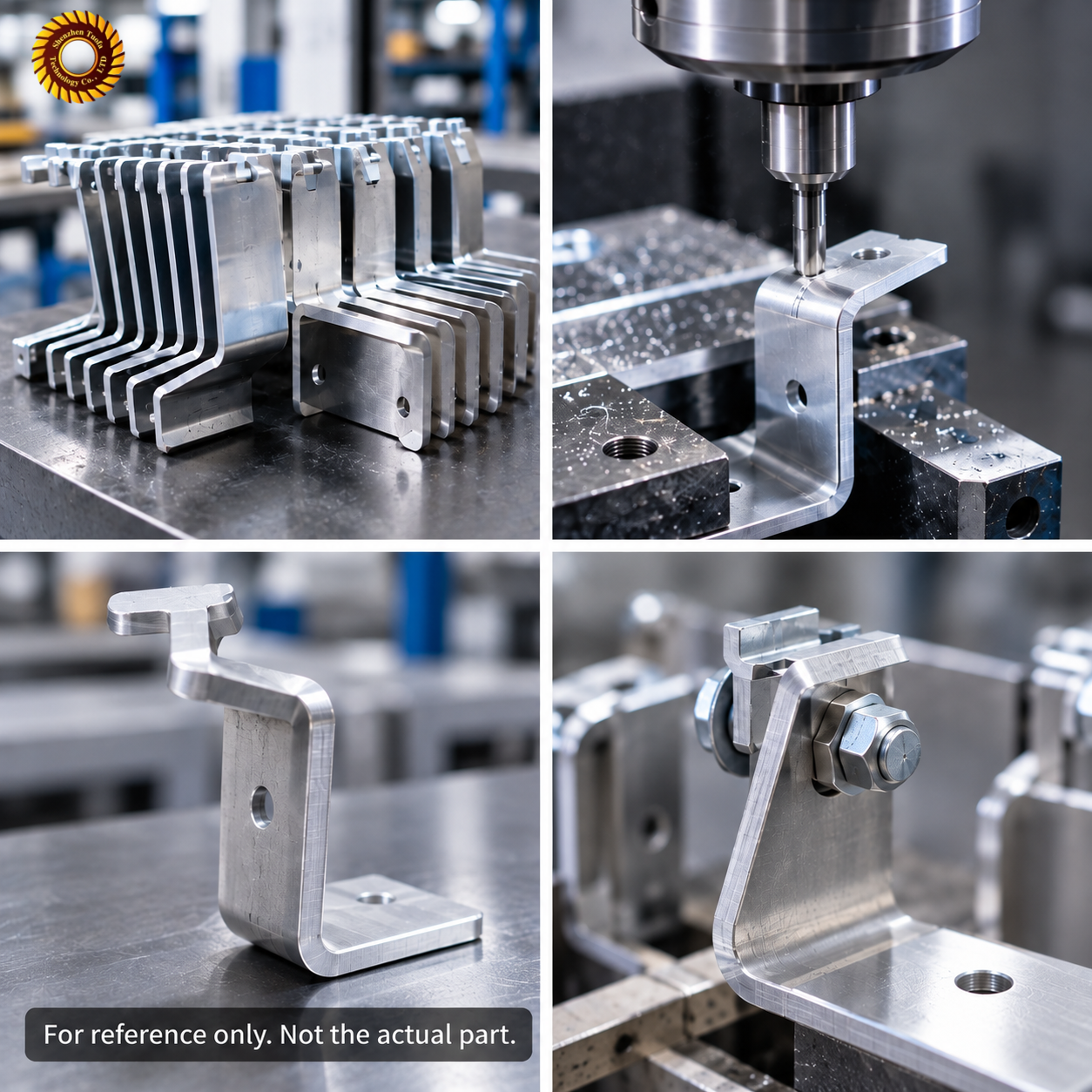

Confidentiality note: The customer project is covered by an NDA. Any bracket images used with this case study should be general market reference images rather than photographs of the customer's actual parts.

What Did the Customer Need?

Solar Power Station Application

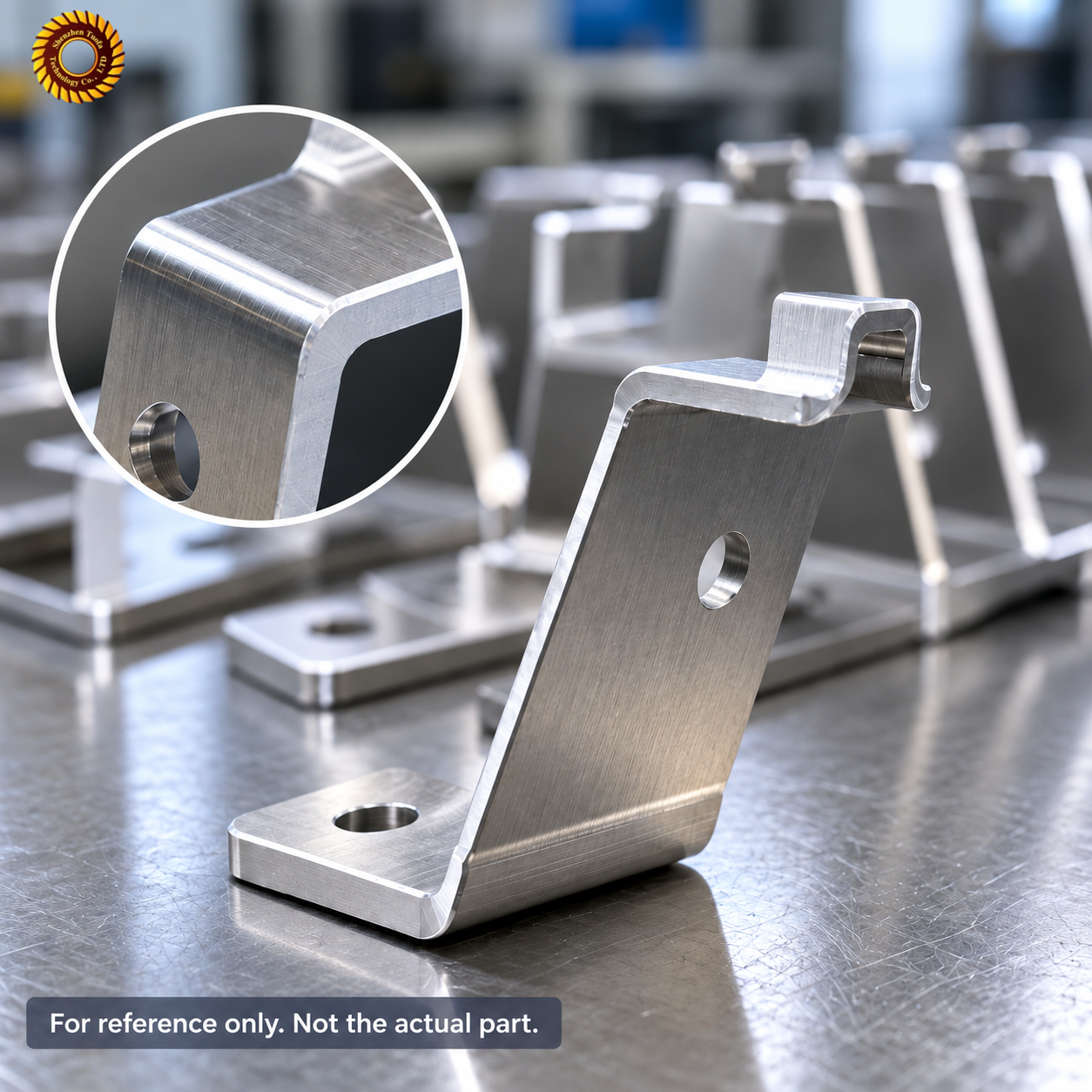

The parts were designed as custom solar brackets for a solar power station. In this type of application, brackets, clips, pins, and fasteners work together as mounting hardware rather than as isolated parts. Their job is to hold connected components in the intended position and maintain reliable mechanical engagement during installation and service.

For OEM teams, a solar panel mounting bracket should be reviewed as part of an assembly, not only as a bent sheet metal part. Hole position, bend angle, threaded features, and stack-up can affect installation fit.

Pre-Production DFM Review at Tuofa

Material Suggestion

Material review started with the function behind the request. The customer came to us with a specific material specification: AL 5052-H32. Della, the account manager for this project, first clarified why the customer wanted a higher-strength temper. The key question was whether the strength increase supported a critical structural requirement or was simply a preferred specification. That distinction affects how much forming risk is reasonable to accept.

(Email Exchange Between Della and the Customer)

• How did Tuofa suggest the material?

At Tuofa, we do not treat a custom order as a one-time task. We first consider whether the proposed material and design are practical for manufacturing and cost control over the longer term. This is why we did not simply accept the requested higher-strength temper. Della first clarified what function the material change was intended to support, so we could provide more relevant engineering suggestions on material selection and the manufacturing approach.

Critical Dimensions and Features

The DFM review focused on dimensions that could affect assembly. The exposed threaded ends were especially important because only 6-13 mm would remain available after assembly. Bend locations and mating relationships were reviewed together rather than as isolated drawing dimensions.

Bending Feasibility

For bent 5052 sheet, a higher-strength temper is not automatically the better choice. As the temper becomes harder, the forming margin becomes smaller and springback can become more difficult to control. The practical bend limit still depends on sheet thickness, inside bend radius, bend direction, and local geometry. For this reason, the material decision was made together with the bending review.

Assembly-Related Design Checks

Before production, the team checked how the Z brackets, mounting clips, pins, and fasteners would interact. The review looked for dimensional variation that could reduce thread engagement, shift alignment, or make semi-assembly difficult.

Which Aluminum Was More Suitable?

Higher Strength vs. Bending Risk

• Why did the customer request higher-strength aluminum?

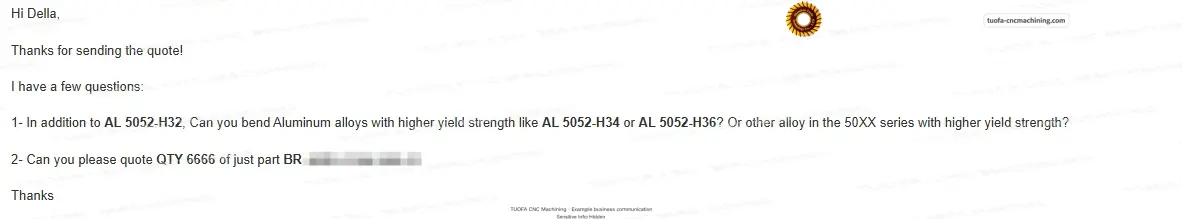

The customer wanted more yield strength and asked about H34, H36, or other stronger 50XX options. The team first separated a true structural need from a preferred specification. If higher strength was essential, the bend design would need to support it. If not, the harder temper could add forming risk without improving bracket performance.

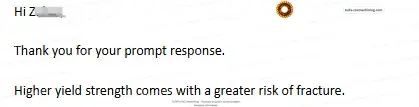

In this case, the harder temper reduced forming margin around the bends. Cracking or excessive springback could also create alignment problems, so strength had to be balanced with manufacturability and assembly.

Why AL 5052-H32 Was Selected

The final sample remained AL 5052-H32. The comparison below starts with the two tempers raised by the customer, H34 and H36, and compares them with the selected H32 temper. 6061-T6 is included as a common higher-strength aluminum reference for similar bracket projects. The goal is to show the trade-off between strength and forming margin rather than to label one alloy as universally better.

*Elongation values are typical for approximately 1.6 mm sheet and are shown only to make the temper differences easier to read. Mechanical properties vary with product form and thickness. For design release, use the applicable material specification and supplier certificate. In this project, the key question was whether the added strength justified the reduced forming margin for the actual bend geometry.

Why Did the Smaller Batch Cost More?

This question comes up often in prototype and low-volume OEM sourcing. A smaller or lighter part does not always produce a lower unit price. In this project, the customer asked why 12 smaller parts were quoted higher than an earlier batch of 30 larger parts. The difference came from how fixed and small-batch costs were distributed, not from material weight alone.

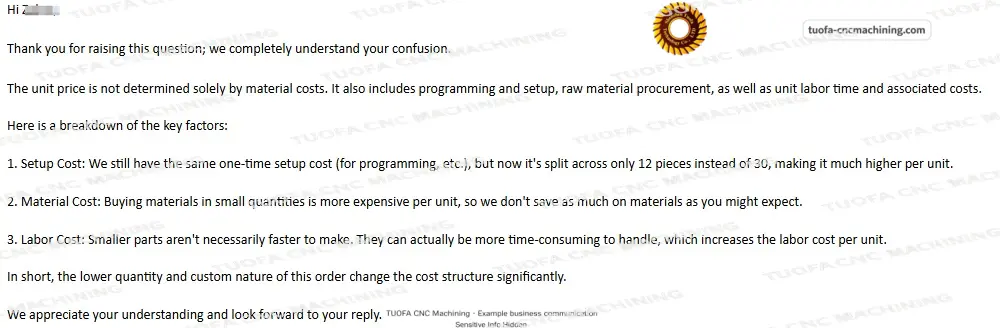

• Programming and setup: Programming, process planning, machine setup, and first-piece verification still take time. When that work is spread across only 12 parts, the cost per part is higher than when it is spread across 30.
• Material procurement: Prototype quantities often require small-lot material purchasing. The unit price of the small batch raw material can be higher, and minimum purchase quantities can affect the quotation.
• Labor efficiency: Changeover, loading, clamping, handling, inspection, and other auxiliary work occupy a larger share of total production time when the batch is small.

For procurement teams, this cost structure matters more than part size alone. Clear quotation logic makes it easier to decide whether quantity, batch consolidation, or a design change can lower cost without adding manufacturing risk.

(Email Exchange Between Della and the Customer)

This workflow is common in the low-volume, multi-material projects we handle. Different materials and batch sizes often require separate sourcing, cost comparison, and production planning before a quotation can be confirmed. Working through these variables across many small-batch orders has given the Tuofa team more practical experience in planning and quoting this type of project.

What Could Affect Final Assembly?

Pre-delivery assembly is a test of a supplier's comprehensive capabilities. It is the ability to control how multiple parts fit, function, and arrive together—not simply the ability to fasten them together.

Manufacturing Challenges

6-13 mm Exposed Thread Length

The exposed threaded end was only 6-13 mm after assembly. That left limited margin for positional variation. If the effective exposed length became too short, the fastener might not achieve enough thread engagement. If mating parts shifted because of bend variation or dimensional stack-up, the installer could also have difficulty starting the thread or tightening the joint consistently.

Thread Engagement and Alignment

Thread engagement and alignment were checked against the actual assembly condition. For the 6–13 mm exposed threaded ends, the review focused on whether there was enough usable thread length for fastening and whether the mating parts could align correctly during assembly. The relevant dimensions and tolerances were then confirmed before production.

Cross-Department Order Review

On the order review before production, they confirmed threaded-end tolerance control, bend springback compensation, assembly-sensitive features, and inspection focus before the parts reached the shop floor.

Lead Time of the Bracket Sample Order

The customer expected the prototype order within 15-20 days. The samples were delivered on day 16. The schedule was not based on compressing every operation. It was mainly supported by resolving open questions before production and keeping internal and external communication moving at the same time.

• Material questions were discussed early, before a change in temper could interrupt production.
• DFM and assembly-sensitive dimensions were reviewed before the order was released to the shop floor.
• Based on the customer’s delivery target, engineering, production, quality, and Della worked out a coordinated schedule.
• Della kept customer confirmations moving when a decision was needed, reducing waiting time between project stages.

For an OEM prototype, this coordination is often more useful than a short lead-time promise. Unresolved drawing, material, or assembly questions can become delays once production starts.

Project Outcome

From Samples to Batch Production

The sample stage allowed the customer to validate both the parts and the assembly approach before a larger order. About six months later, in June 2026, the project moved into batch production, carrying forward the material and assembly decisions made during prototyping.

The practical result was a clearer material decision, a quotation the customer could understand, and assembly risks reviewed before shipment. The sample process also created a more stable baseline for repeat production.

Conclusion: What Tuofa Learned from This Project

This solar bracket case shows why a custom sheet metal project should not be reduced to drawing-to-part production. Material choice affects bending; bending affects alignment; alignment affects thread engagement.

For similar custom solar panel brackets, the useful workflow is to understand the reason behind each critical requirement, review manufacturability early, identify dimensions that control assembly, and make cost and schedule trade-offs visible. That gives OEM engineers and buyers better information for the next decision.

FAQs

What Aluminum Is Suitable for Solar Panel Mounting Brackets?

There is no single best aluminum for every solar bracket. The choice depends on load, geometry, forming, outdoor environment, and project standards. 5052-H32 is practical for many formed brackets because it combines corrosion resistance, moderate strength, and useful formability.

Why Can a Small Prototype Batch Cost More per Part?

Prototype pricing includes more than raw material. Programming, setup, first-piece verification, small-lot material procurement, handling, and inspection are spread across fewer parts, so a 10-20 piece sample can cost more per part than a larger batch.

What Should Be Checked Before Assembling Custom Solar Brackets?

Check the dimensions that control fit: bend angle and springback, hole or pin alignment, usable thread engagement, fastener access, mating surfaces, and tolerance stack-up. The exact checklist depends on the assembly design.

Can Tuofa Provide Semi-Assembly for Solar Bracket Parts?

Yes, when the project requires it. In this case, the scope included semi-assembly of Z brackets, mounting clips, pins, and fasteners. Assembly and inspection requirements should be confirmed from the drawings before production.
